Description

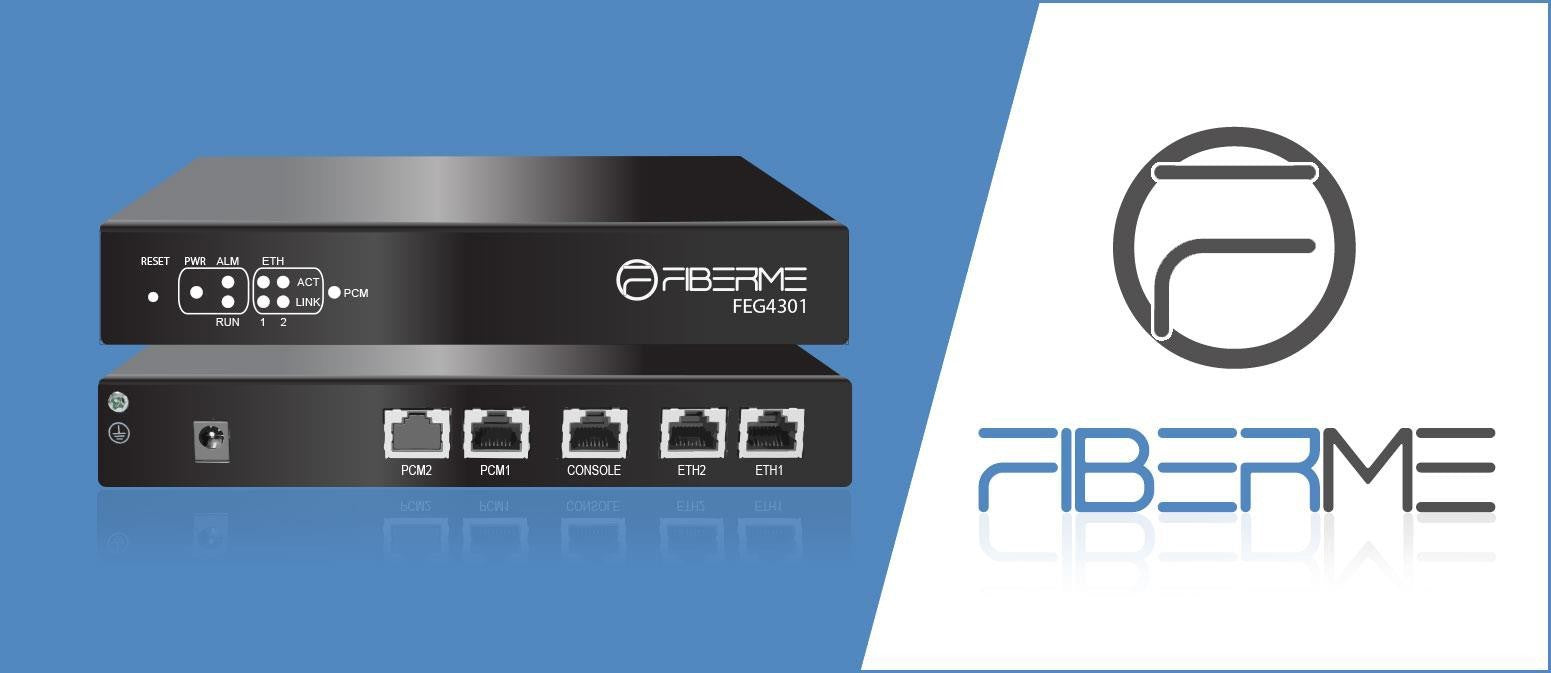

FIBERME E1/T1 VoIP Gateway

FEG4301

FEG4301 is unparalleled cost effective and compliant with PRI ISDN, R2 and SS7 packets, and adopt the equivalent hardware architecture, with dedicated DSP chipsets for processing IP/TDM signaling and optimizing voice quality. Compared with rival products, FEG4301 features high reliability and unmatched cost, and delivers a perfect alternative option for enterprises, operators and system integrators

User-Friendly Management & Toolkits



The Web graphical user interface (WebUI) is a real-time web  toolkits to configure and monitor and perform real-time monitoring and maintenance. Flexible SIP and Protocols configuration help to configure SIP, SIP trunking, SIP Mediation, PCM, SS7 and ISDN, Routing  and more.

ownership cost and operational cost; a broad range of gateway toolkits help gateway’s maintenance and software upgrading for Web UI, gateway  services  and firmware.



between  SS1,  R2,  ISDN,  SS7,  SIP  formats  and  any-to-any media

transcoding for popular voice codecs, T.38  and G.711 fax interworking, RTP, INBAND and SIPINFO.

of  platforms  deployed, and support a  range of Codecs,  including

G.723,   G.729,   G.711,   iLBC,   SIPINFO,   RFC2833,   RF3261,

INBOUND  and more



FEG4301

E1/T1 Ports

1

Sessions

30

Routing Features

Call routing and translation (from PCM to IP or reversely)

IP Interfaces

Dual redundant 2 *100 Base-T Ethernet for VoIP payload and signaling

IP protocols

TCP/UDP, HTTP, ARP/RARP, DNS, NTP, TFTP, TELNET, STUN, etc.

Coder support

G.711A,G.711U, G.729

Power Supply

Single

TDM Signaling Protocols

ISDN PRI/MF R2/SS7 ISUP/SS7 MTP1~3/SS7 SIGTRAN/SS7 TCAP

Power Requirements

12V DC

Mounting

Desktop

Compatibility

Interoperable with most IP-PBX and UC Platform, and field-proven by SMB and Carriers Worldwide

Dimensions H*W*D(mm)

30*190*120

Environment

Operating temperature range :0 to +55 °C, 8-90% relative humidity non-condensing Storage

temperature range:-20 to +85 °C, 8-90% relative humidity non-condensing

Routing

Call Routing and translation (PCM↔IP)

Safety

Compliant with most international standards, please ask FIBERME or its sales representatives worldwide. FIBERME would comply all new safety standard to for different regions around the world while needed.

EMC/EMI

Compliant with most international standards.

For compliance documents, please contact FIBERME’s sales representatives.

OAM&P

Network Time Protocol(NTP)

Web User interface (WebUI) supports configuration via browser SNMP MIBs

Dedicated DSP-Empowered Capability

Telecom-style DSP algorithm has been optimized for over decades, assuring seamless compliance with any network environment.

Plentiful DSP resources are allocated for signaling, media processing, bandwidth optimization, Telco redundancy
