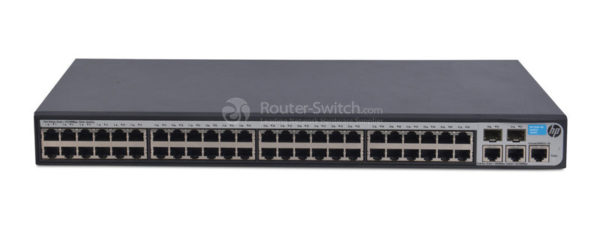

HP JG540A 1910-48 Switch

JG540A Specifications

Type

HPE OfficeConnect 1910 48 Switch

Ports

• · 48 RJ-45 autosensing 10/100 ports (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE-TX)

Duplex: half or full 2 SFP 100/1000 Mbps slots (IEEE 802.3u Type 100BASE-FX, IEEE 802.3z Type 1000BASE-X)

• · 2 RJ-45 autosensing 10/100/1000 ports (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE-TX, IEEE 802.3ab Type 1000BASE-T)

Duplex: 10BASE-T/100BASE-TX: half or full

1000BASE-T: full only

• · 1 RJ-45 console port to access limited CLI port
• · Supports a maximum of 48 autosensing 10/100 ports plus 2 autosensing 10/100/1000 ports plus 2 SFP 100/1000 slots

Memory and processor Module

MIPS @ 500 MHz, 32 MB flash, 128 MB RAM; packet buffer size: 1.5 MB

Management

IMC – Intelligent Management Center

limited command-line interface

Web browser

SNMP Manager

IEEE 802.3 Ethernet MIB

Mounting

Mounts in an EIA-standard 19 in. telco rack or equipment cabinet (hardware included)

100Mb Latency

< 5 μs

1000Mb Latency

< 5 μs

Throughput

up to 13.1 Mp/s (64-byte packets)

Routing/Switching capacity

17.6 Gb/s

Routing table size

32 entries (IPv4)

32 entries (IPv6)

MAC address table size

8192 entries

Dimensions (H x W x D)

4.4 x 44 x 17.3 cm (1.73 x 17.32 x 6.81 in)

Weight

2.3 kg (5.07 lb)

Voltage

100-240 V ac

Frequency

50/60 Hz

Maximum power rating

22 W

Operating temperature

0° to 40°C (32° to 104°F)

Operating relative humidity

10% to 90%, non-condensing

Non-operating/Storage temperature

-40° to 70°C (-40° to 158°F)

Non-operating/Storage relative humidity

10% to 95%, noncondensing

Safety

IEC 60950-1

EN 60950-1

UL 60950-1 2nd Edition

CSA C22.2 No. 60950-1-07 2nd Edition

Emissions

FCC part 15 Class A

VCCI Class A

EN 55022 Class A

CISPR 22 Class A

EN 55024

EN 61000-3-2 2000

61000-3-3

ICES-003 Class A

Device management

RFC 2819 RMON

General protocols

IEEE 802.1D MAC Bridges

IEEE 802.1p Priority

IEEE 802.1Q VLANs

IEEE 802.1s (MSTP)

IEEE 802.1w Rapid Reconfiguration of Spanning Tree

IEEE 802.3 Type 10BASE-T

IEEE 802.3ab 1000BASE-T

IEEE 802.3ad Link Aggregation Control Protocol (LACP)

IEEE 802.3i 10BASE-T

IEEE 802.3x Flow Control

IEEE 802.3z 1000BASE-X

MIBs

RFC 1213 MIB II

RFC 1493 Bridge MIB

RFC 2021 RMONv2 MIB

RFC 2233 Interface MIB

RFC 2571 SNMP Framework MIB

RFC 2572 SNMP-MPD MIB

RFC 2573 SNMP-Notification MIB

RFC 2573 SNMP-Target MIB

RFC 2613 SMON MIB

RFC 2618 RADIUS Client MIB

RFC 2620 RADIUS Accounting MIB

RFC 2665 Ethernet-Like-MIB

RFC 2667 IP Tunnel MIB

RFC 2668 802.3 MAU MIB

RFC 2674 802.1p and IEEE 802.1Q Bridge MIB

RFC 2737 Entity MIB (Version 2)

RFC 3414 SNMP-User based-SM MIB

RFC 3415 SNMP-View based-ACM MIB

RFC 3418 MIB for SNMPv3

Network management

IEEE 802.1AB Link Layer Discovery Protocol (LLDP)

IEEE 802.1D (STP)

QoS/CoS

IEEE 802.1P (CoS)

Security

IEEE 802.1X Port Based Network Access Control
