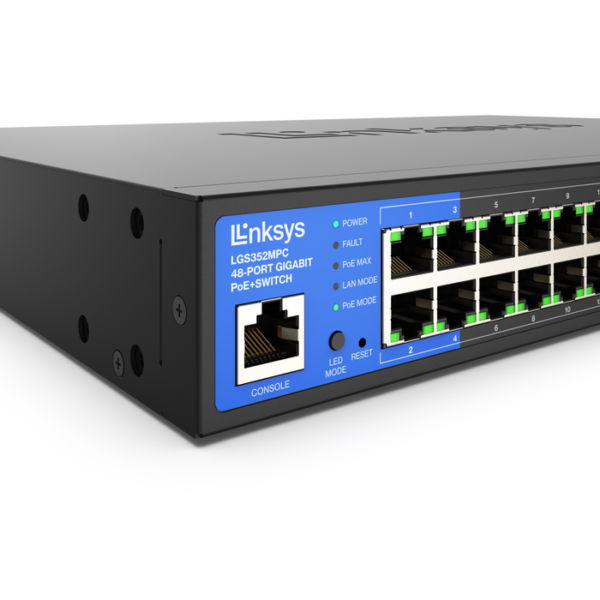

Linksys Business Switch -48-Port Managed Gigabit PoE+ Switch with 4 10G SFP+ Uplinks 740W TAA Compliant LGS352MPC
Request a quote for prices
- Description
- Reviews (0)
Description
Business Switch – 48 Port48-Port Managed Gigabit PoE+ Switch with 4 10G SFP+ Uplinks 740W TAA Compliant LGS352MPC
Switch Type
- Managed
Switch Ports
- 48
PoE+ Budget
- 251W – 410W
PoE Support
- Yes
Power Consumption
- 885W
Jumbo Frame (FE, GE)
- 12Kbytes
LEDs
- Power, Fault, PoE Max, LAN Mode, PoE Mode
VLAN
- Port-based and 802.1q VLANs, Management VLAN, Guest VLAN support
Memory
- 512MB
Forwarding Rate
- 130.95 Mpps
Dimensions (LxWxH)
- 17.32 x 16.14 x 1.73 in
- 440 x 410 x 44 mm
Weight
- 4707 g (10.38 lb)
Number of VLANs Supported
- 256 active VLANs (4,096 range)
Operating Humidity
- 10 to 90% RH
Operating Temperature
- 0 to 50°C (32 to 122°F)
Ports
- 4 10G SFP+
- 48 Gigabit Ethernet
Power Dedicated to PoE+
- 740W
Security Features
- 802.1x Radius authentication
- DHCP snooping
- IP-MAC binding
- Port Security (256 max entries per port)
Rate Limiting
- Rate limit according to network speed, 12kbps~1000Mbps: in steps of 16kbps
Power Input
- 100–240V
- 12A
- 50–60 Hz
Spanning Tree
- IEEE 802.1d Spanning Tree, IEEE 802.1w Rapid Spanning Tree, IEEE 802.1s Multiple Spanning Trees (16 instances) IGMP, MLD
Quality Of Service
- 8 hardware queues
- Port-based, 802.1p priority-based, IPv4/v6 IP DSCP-based
- Strict, Weighted Round Robin (WRR)
Storage Temperature
- -20 to 70°C (-4 to 158°F)
Warranty and Support
- 2 Year Warranty (Australia and New Zealand)
- 5 Year Warranty (most countries)
RMON
- Embedded remote monitoring (RMON 1, 2, 3, 9) software agent support for enhanced traffic management, monitoring, and analysis
MAC Address Table Size
- 32K
Switching Capacity
- 176 Gbps
HOL Blocking Prevention
- Head of line (HOL) blocking prevention
Auto Voice VLAN
- Voice traffic is automatically assigned by OUI to a voice-specific VLAN and treated with appropriate levels
Other Management
- Telnet, SSH, DHCP client, system log, configuration upload and backup via HTTP or TFTP, PING, Traceroute, dual images, SNTP
Link Aggregation
- IEEE 802.3ad LACP, up to 8 groups with up to 8 ports per group
Access Control
- Ingress, MC Based ACL, IPv4 Based ACL, IPv6 Based ACL, ACL Binding, Action: permit/deny
Storm Control
- Support broadcast/unknown multicast/unknown unicast 16kbps~1000Mbps: in steps of 16kbps
Management Interface
- HTTP
- HTTPS
Routing
- Static Routing, IPv4 (63 max entries), IPv6 (21 max entries)
SNMP
- Version 1
- Version 2c
- Version 3
Fans
- 3, 8200 rpm (at full speed)
Storage Humidity
- 5 to 95% RH (non-condensing)
IGMP Snooping
- IGMP (v1/v2/v3) snooping provides for fast client joins and leaves of multicast streams and limits bandwidth-intensive video traffic to only the requestors; supports 256 multicast groups
Power Saving
- EEE
Port Mirroring
- Traffic on multiple ports (up to 3 ports) can be mirrored to another port for analysis with a network analyzer
Firmware Upgrade
- TFTP
- Web Browser (HTTP/HTTPS)
Features
1G SFP OR 10G SFP+ Uplink Ports
Enable fast, dedicated connections back to your core network.
Network Expansion Features
Build a mesh of switches easily with features like Spanning Tree Protocol (STP) and storm control. They help control planned or inadvertent cable loops so you can expand your network with confidence.
Advanced Network Security
Ensure data passes to authorized clients only with port authentication. Advanced DHCP snooping and IP-MAC binding functions assure network integrity and help prevent attacks.
Quality of Service (QOS) Traffic Prioritization
Prioritize traffic with numerous QoS features. Ideal for real-time voice and video applications as well as high bandwidth graphic or video uploads and downloads.
