Description
Capacity: 1000VA / 1000W
Topology: Online double-conversion

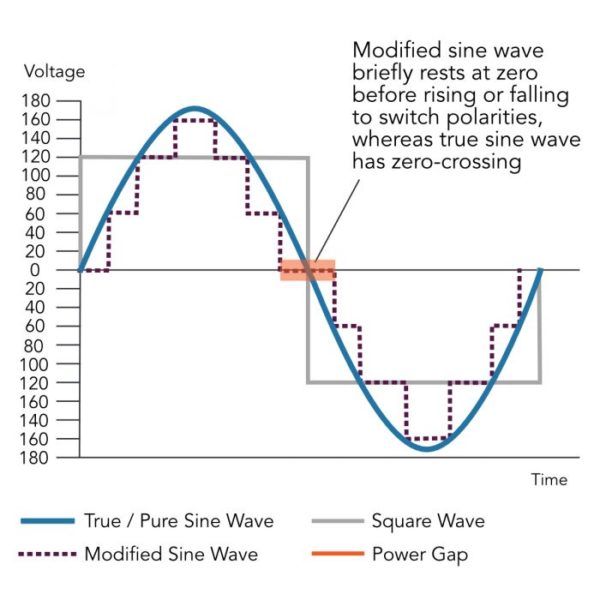

Waveform: Sine wave
Outlets: 8
Features:
• 1.0 power factor
• Zero transfer time from Line to Battery
• Adjustable charging current up to 8A
• Expandable runtime
• Load segment control
• 50/60Hz Frequency Converter Mode
• Emergency Power Off (EPO)
• ECO and Advanced ECO Modes
| OVERVIEW | |
| Model | ULT-P1KRT |
| Capacity | 1000VA / 1000W |
| Topology | Online double-conversion |
| INPUT | |
| Voltage | 100 / 110 / 115 / 120 / 127Vac |
| Voltage Range | 55 – 150Vac +/- 5% at 50% load 80 – 150Vac +/- 5% at 100% load |
| Frequency | 40 – 70Hz |
| Inlet | NEMA 5-15P |
| OUTPUT | |
| Output Voltage | 100 / 110 / 115 / 120 / 127Vac |
| Frequency Range (on Battery) | 50 / 60 Hz +/- 1% |
| Output Voltage | 100 / 110 / 115 / 120 Vac |
| Current Crest Ratio | 3:1 (max) |
| Harmonic Distortion | <2% THD (linear load) <4% THD (non-linear load) |
| Wave Form (on Battery) | Sine wave |
| Outlet | 8 x NEMA 5-15R |
| TRANSFER TIME | |
| Line to Battery | 0ms |
| Inverter to Bypass | 4ms (typical) |
| EFFICIENCY | |
| AC Mode | 89% |
| Battery Mode | 88% |
| ECO Mode | 96% |
| BATTERY | |
| Chemistry | Sealed lead-acid |
| Quantity & Size | 2 x 12V / 9Ah (optional 3 x 12V / 7Ah for custom orders) |
| Charging Voltage | 27.4 Vdc +/- 1% |
| Charging Current | 2A – 8A (adjustable) |
| Recharge Time | 3 hours to 95% capacity for internal batteries at 2A charging current |
| PROTECTION | |
| Emergency Power Off (EPO) | Yes |
| Overload Protection | Yes |
| Overcharge Protection | Yes |
| Network / Phone / Fax Surge Suppression | Yes, RJ-11/45 combo ports (1-in, 1-out) |
| Surge Suppression | Yes |
| EMI / RFI Filter | Yes, full time |
| ADDITIONAL FEATURES | |
| Add-On External Battery Banks | Yes, up to four battery banks (model # ULT-P1KRTBB) may be used with this model |
| Programmable Outlets | Yes |
| ECO Mode | Yes |
| Advanced ECO Mode | Yes |
| Frequency Converter Mode | Yes, however using will derate UPS capacity by 40% |
| COMMUNICATION | |
| USB Port | Yes, for power management software to control and monitor the UPS conditions |
| RS232 Port | Yes, for power management software to control and monitor the UPS conditions |
| Software | Compatible with Windows 10/8/7/ Server 2012 R2 / 2008 R2 / Linux 32-Bit / 64-Bit / mac 10.6 to 10.11 |
| Intelligent Slot | Yes, for use with add-on remote power management network card (model #SNMP-2) |
| STATUS INDICATORS | |
| LCD Screen | Yes, for Input/Output Voltages, Battery Level, Fault, status codes, and more |
| Audible Alert | Yes |
| WARRANTY | |
| Warranty | 2-Year: Equipment and $25,000 Connected Equipment Warranties. 2-Year: Battery Warranty. See Terms of Use and Warranty pages for additional information. |
| PHYSICAL | |
| Color | Black |
| Form Factor | Rack / tower convertible |
| Product Dimensions (DWH) | 16.1 x 17.2 x 3.5 in / 410 x 438 x 88 mm |
| Product Weight | 25.6 lb / 11.6 kg |
| Product specifications are subject to change without further notice. Maruson assumes no responsibility, and disclaims all liability, for any damages that may result from the use of this information or for any errors or omissions. Battery backup time varies with equipment, configuration, battery age, temperature, etc. |
