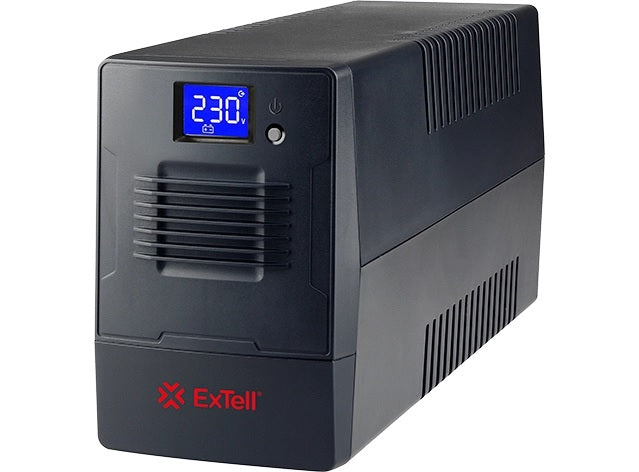

UPS ExTell Atom 650VA, Line Interactive

Request a quote for prices

  • Cold Start Function
  • LCD Display
  • Compact Size
  • 500VA to 2000VA
  • AVR for Voltage Stabilization
  • Simulated Sinewave output
  • Universal Output Power Socket
SKU: EATM-600CD Categories: ,
Compare

Description

ExTell Atom Line Interactive UPS is the perfect protection device for your Personal Computers. Small and Economic, Atom is designed to protect against Power Surges and Spikes. With a Built In AVR Stabilizer, Atom gives a pure and clean stable power to your connected equipment.

Atom LI UPS gives you a rich touch LCD Display with all vital information. With a compact size, Atom is has a cold start function and high reliability through its microprocessor design.

Features

  • Cold Start Function
  • LCD Display
  • Compact Size
  • 500VA to 2000VA
  • AVR for Voltage Stabilization
  • Simulated Sinewave output
  • Universal Output Power Socket

    TECHNICAL SPECIFICATIONS

    Model

    EATM-600CD

    Capacity

    600VA/360W

    INPUT

    Nominal Voltage

    22/230/240 VAC

    Voltage Range

    -35% to +25%

    Frequency Range

    50 or 60 Hz (Auto Sensing)

    OUTPUT

    Voltage Regulation

    AC Mode / Battery Normal: 220/230/240 VAC ± 10%

    Frequency

    182 ~ 253 VAC at 100% load; 121 ~ 153VAC at <63% load

    Waveform

    50/60Hz (Auto sensing)

    Transfer Time

    40Hz ~70Hz

    Outlet Configuration

    German or Universal X 2 PCS Backup & AVR

    BATTERY

    Voltage

    12V DC

    Type

    12V/7Ah x 1PC

    Recharge Time

    5 hours to 90% after Complete Discharge

    Safety Protection

    Over Charge and Over Discharge Protection

    Advanced Battery Management

    Yes

    DISPLAY

    LCD Display

    Input and Output Voltage & Frequency
    Load%
    Battery%

    AUDIBLE ALARM

    Battery Mode

    Two short tones every 8 seconds

    Low Battery

    Four short tones every second

    Overload

    Red: LED: Flashing
    Buzzer: Beeping continuously

    Fault

    Beeping Continuously

    MANAGEMENT

    Smart USB

    Software supporting Windows 10

    ENVIRONMENT

    Operating Temp

    0 ~ 40°C

    Relative Humidity

    0 ~ 95% non-condensing

    Accoustic Noise

    <40db at 1M

    PHYSICAL

    Dimensions

    315.5 * 100 * 141 mm
